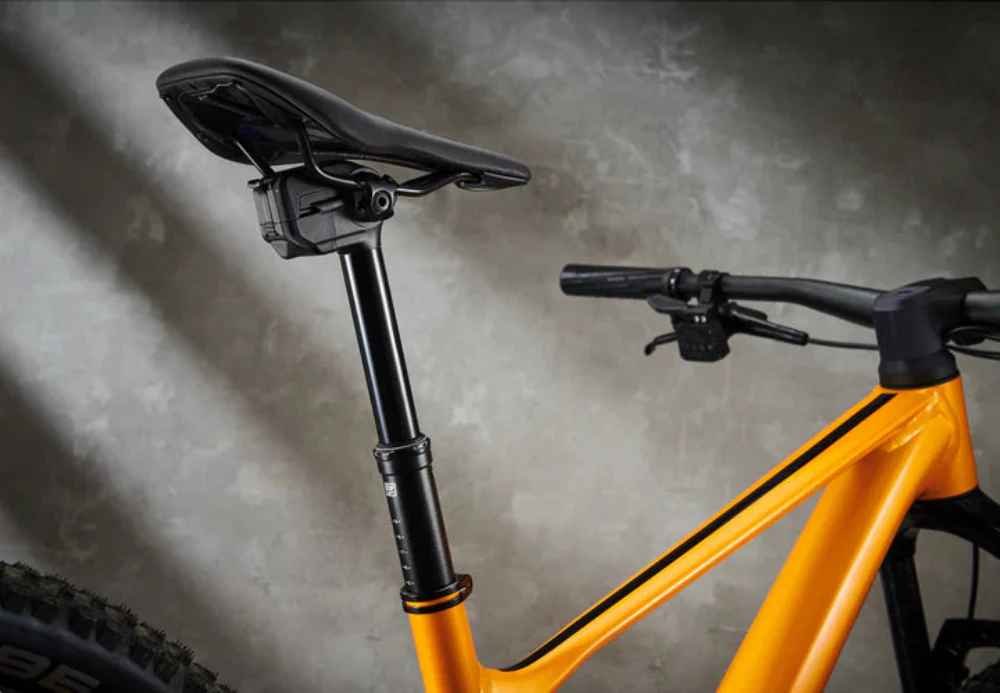

TranzX EDP01 Wireless Electronic Dropper Post

GO WIRELESS. RIDE SMARTER

Say goodbye to cables with the all-new TranzX EDP01 Wireless Dropper Post—one of the shortest wireless droppers on the market, offering up to 200mm of smooth, reliable travel. Its fully wireless design means effortless installation, zero cable clutter, and minimal maintenance. Built on TranzX’s proven reliability, the EDP01 delivers simplicity, performance, and a clean, modern cockpit for riders who want more ride time and less wrench time.

Quick specs

• Travel: 150, 170 & 200mm
• Diameters: 30.9 & 31.6mm
• Sealed adjustable air cartridge
• Bluetooth 5.0 wireless connectivity
• Automotive grade IPX 66 rated water resistance
• Rechargeable lithium-ion battery
• 0mm offset post head with secure 2-bolt saddle clamp
• Weights: 648-748g depending on diameter, measured with 200mm travel version
• Lever remote uses common CR2032 battery
• 1-Year Warranty

What's Included:

• EDP01 wireless dropper post

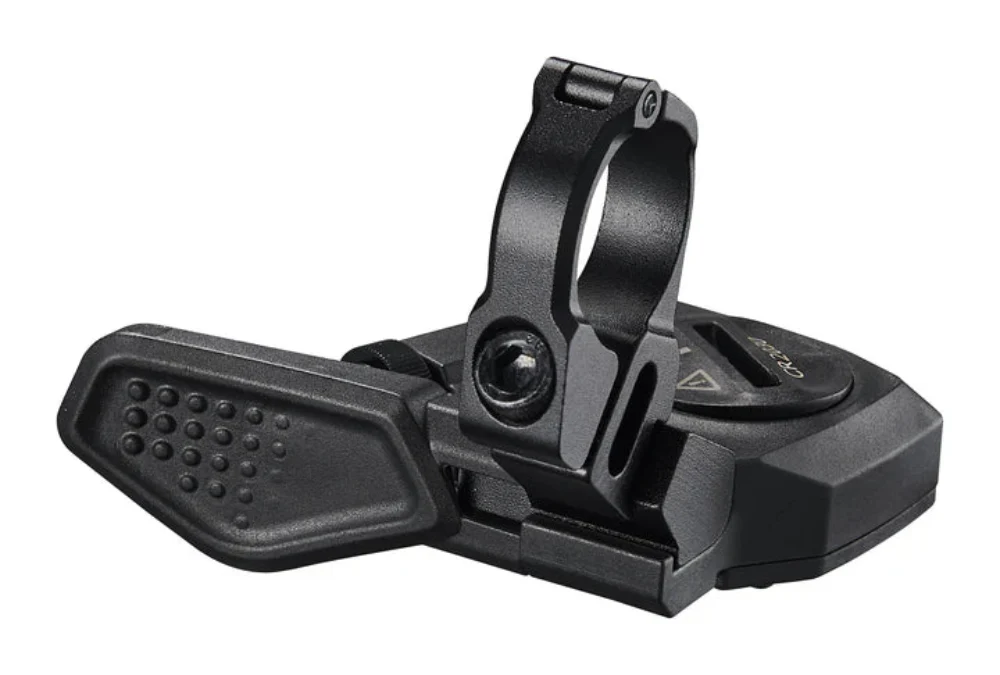

• EDP01 remote lever w/ 22mm clamp
• EDP01 rechargeable battery

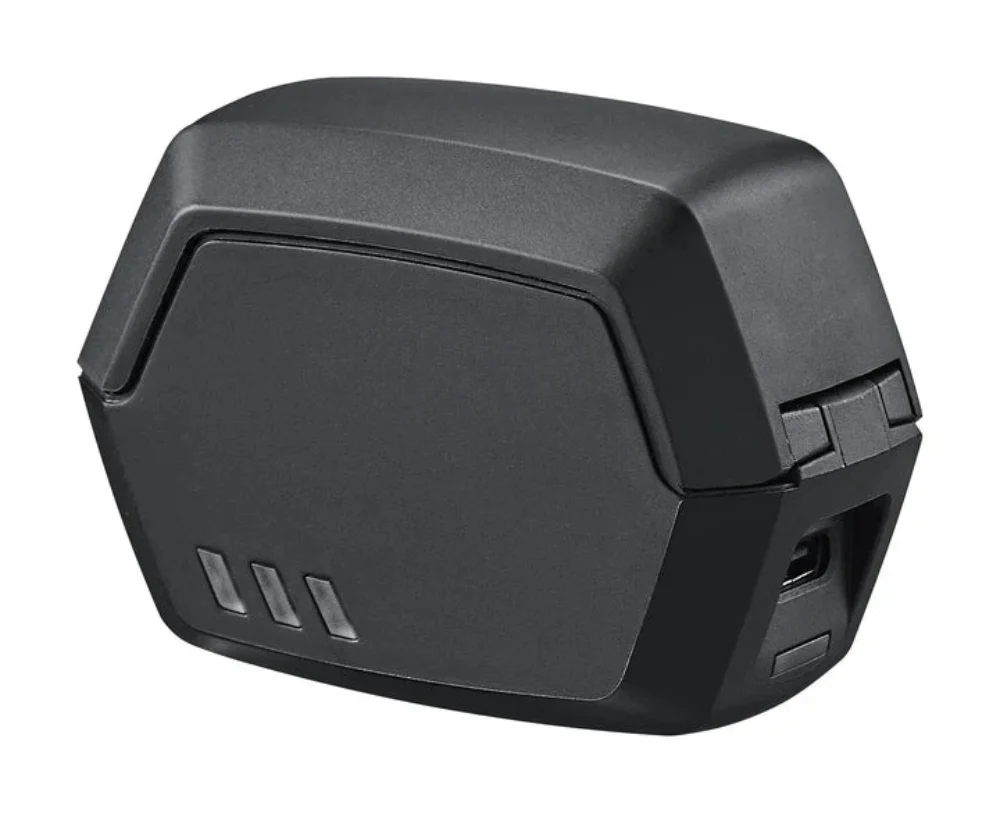

• EDP01 charging case
• Required charging cables
• CR2032 battery for remote

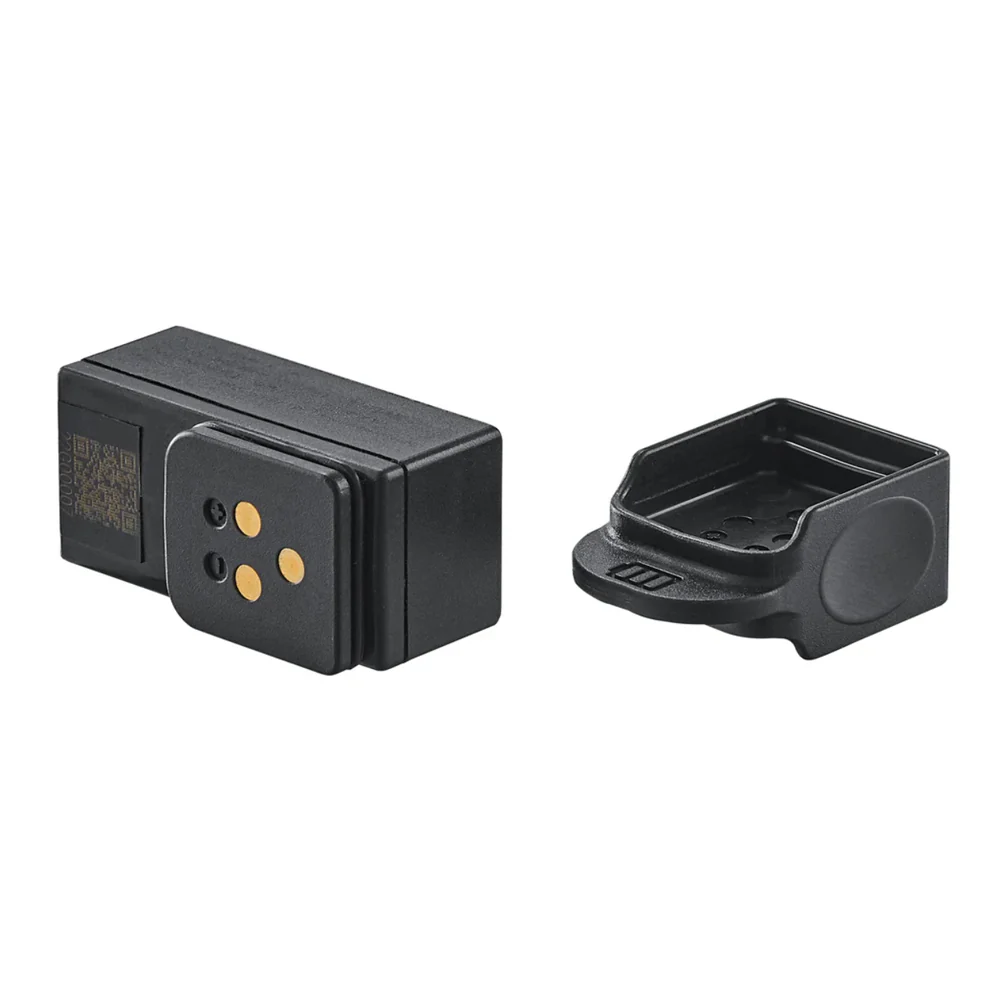

The Battery

• Battery Voltage: 7.4V (nominal)
• Battery capacity: 240mAh
• Battery size: 40.5 *19.0 *21.2mm
• Battery weight: 20.5g
• Estimated range: Over 6,000 times per fully charged battery (continuous activations)

The Charger

• Charge voltage: 8.4V
• Charge current: 240mA
• Charge time: approx. 90 minutes
• Power source: 5Vdc, USB powered
• Plug type: USB Type-C

DIMENSIONS
