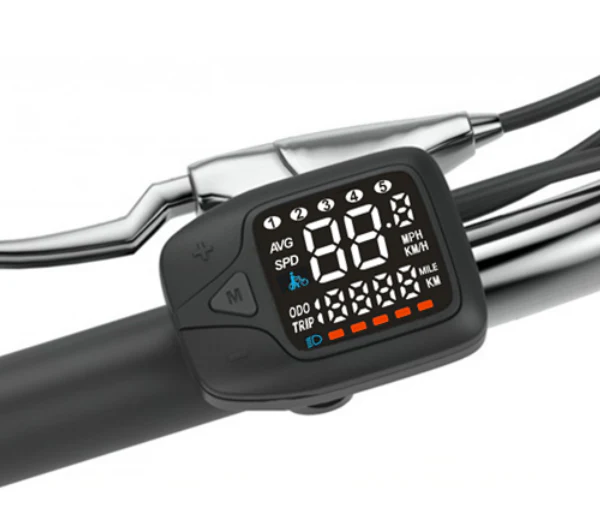

Entity EDS - 100 Multifunction LCD Display - Folding 20

The EDS-100 is an all in one multifunction display from Entity. Keeping the controls together with the display reduces the unsightly and excessive wiring on the handlebars.

The display can easily be read even in direct sunlight. In low light conditions, when the bike lights are turned on the display dims so as not to blind the rider.

From the Entity display it is possible to control

• Turning the entire e-bike system on. (It draws very little current whilst turned
       off)
• Choose from one of the 5 levels of pedal assistance, or select to have no pedal
       assistance at all
• Walk assist mode. This is helpful whilst walking the bike up steep hills. Hold the
      - button down to operate the motor at 6km/hr
• The lights can be turned from the display, much easier than having to reach
       each light independently. Simply hold down the + button. The display will dim
       during this time too, for easier night time riding.
• Battery capacity is indicated at the bottom of the display. Unlike typical LED
       display, this is highly accurate and can be read whilst riding.
• The unit also has the ability to display error codes that are built into the
       system. This safeguards the rider and the system in the event of a fault and
       enables faster and better service.
• Configurations. It is possible to change the parameters of the bike including
       wheel size, number of assistance levels, maximum speed etc

Specifications

• Levels of Assistance - 5
• Voltage - 5V
• Configurable - Adjust the parameters for the system
• Supports - 36v system
• Certification - CE / ROHS
