-65%2024 Polygon Siskiu T8 Frameset—
$285.02
$99.76The Story

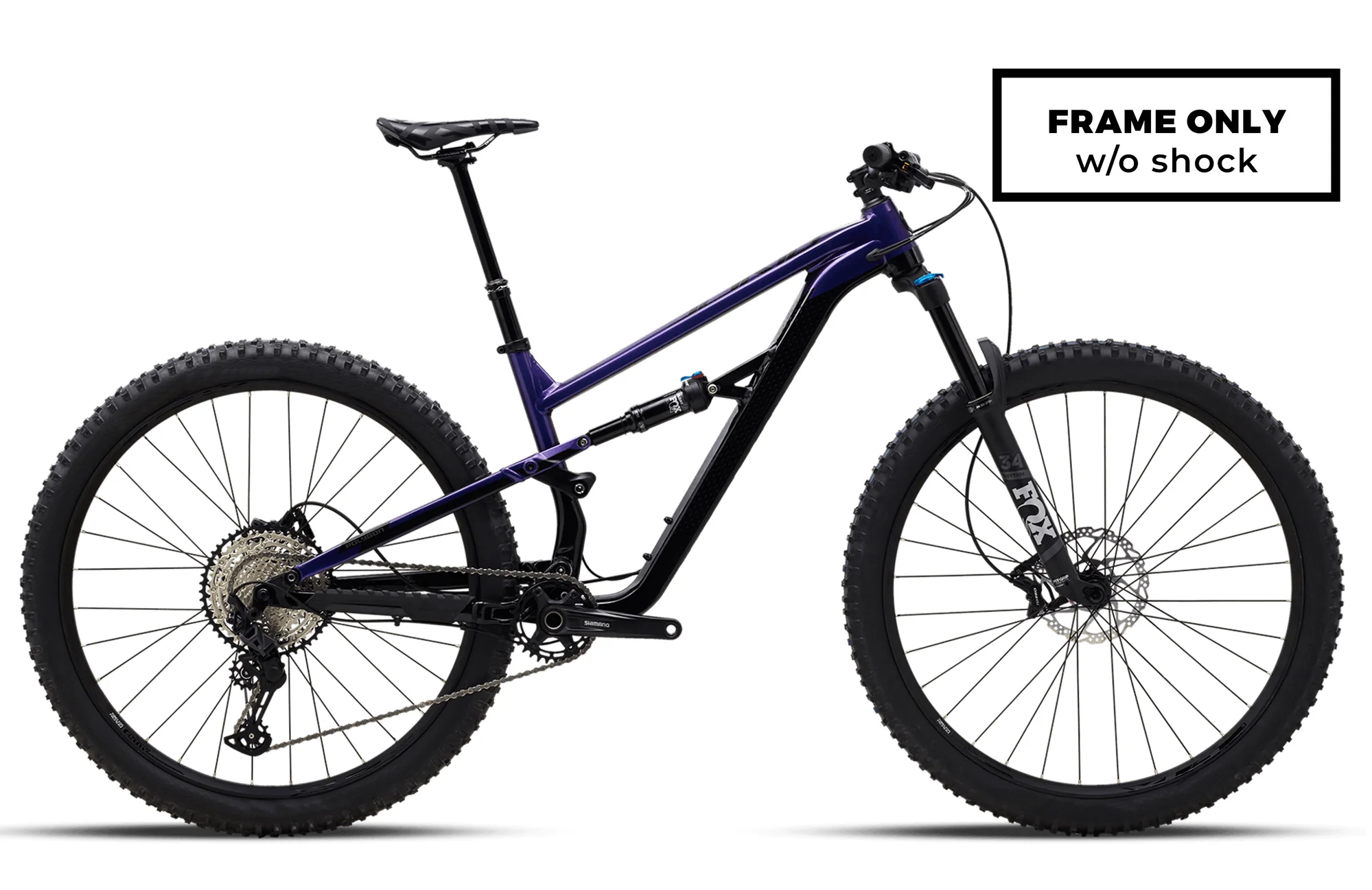

Siskiu T8 Frame without shock
Headset set: ZS44 : ZS 56
Seat post: 30.9
Rear Axle: 174, M12, 1.5"
Shock Spec: 210x55 with M8x25mm hardware
| S (27.5″) | M (27.5″) | M (29″) | L (29″) | XL (29″) | |
| Height (cm) | 155-165 | 165-175 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 385 | 400 | 400 | 415 | 430 |
| Seat Tube Angle (B) | 71 | 71 | 70.5 | 70.5 | 70.5 |
| Effective Seat Tube Angle (C) | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| Head Tube Length (D) | 105 | 120 | 90 | 105 | 120 |
| Head Tube Angle (E) | 65 | 65 | 65.5 | 65.5 | 65.5 |
| Effective Top Tube (F) | 582.5 | 605.7 | 605.9 | 629.1 | 652.4 |
| Bb Height (G) | 335 | 335 | 335 | 335 | 335 |
| Bb Offset (H) | 20 | 20 | 39 | 39 | 39 |
| Chainstay Length (I) | 425 | 425 | 430 | 430 | 430 |
| Wheelbase (J) | 1172.8 | 1199.1 | 1193.5 | 1219.7 | 1245.9 |
| Frame Reach (K) | 440 | 460 | 460 | 480 | 500 |
| Frame Stack (L) | 593.5 | 607.1 | 607.6 | 621.2 | 634.9 |
| Standover Height (M) | 666.6 | 672.5 | 676.6 | 686.2 | 695.9 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Siskiu T8 Frame without shock
Headset set: ZS44 : ZS 56
Seat post: 30.9
Rear Axle: 174, M12, 1.5"
Shock Spec: 210x55 with M8x25mm hardware
| S (27.5″) | M (27.5″) | M (29″) | L (29″) | XL (29″) | |
| Height (cm) | 155-165 | 165-175 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 385 | 400 | 400 | 415 | 430 |
| Seat Tube Angle (B) | 71 | 71 | 70.5 | 70.5 | 70.5 |
| Effective Seat Tube Angle (C) | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| Head Tube Length (D) | 105 | 120 | 90 | 105 | 120 |
| Head Tube Angle (E) | 65 | 65 | 65.5 | 65.5 | 65.5 |
| Effective Top Tube (F) | 582.5 | 605.7 | 605.9 | 629.1 | 652.4 |
| Bb Height (G) | 335 | 335 | 335 | 335 | 335 |
| Bb Offset (H) | 20 | 20 | 39 | 39 | 39 |
| Chainstay Length (I) | 425 | 425 | 430 | 430 | 430 |
| Wheelbase (J) | 1172.8 | 1199.1 | 1193.5 | 1219.7 | 1245.9 |
| Frame Reach (K) | 440 | 460 | 460 | 480 | 500 |
| Frame Stack (L) | 593.5 | 607.1 | 607.6 | 621.2 | 634.9 |
| Standover Height (M) | 666.6 | 672.5 | 676.6 | 686.2 | 695.9 |
